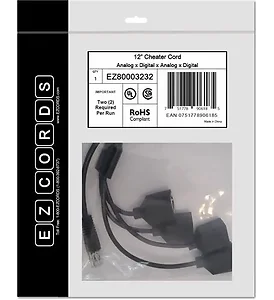

Ezcords EZC-EZ80003232 2x2 Cheater Cord For Analog And Digital Signals

The 2x2 Cheater Cord is a versatile Universal Wiring Harness designed to facilitate easy network expansion utilizing standard Ethernet cabling. It can seamlessly integrate into any 568A or 568B Network Cabling Plan.

Measuring 12 inches in length, this cord allows you to split a single Ethernet cable into four separate circuits, which helps in avoiding the hassle of running additional cables.

Typically, the male plug is inserted into an outlet on the 'House' Patch Panel, located near the data switch or router. From there, the four jacks can transmit different signals:

• Jack #1: Pins 4 & 5 = ANALOG (Generic Single Line Telephone or Single Central Office Trunk)
• Jack #2: Pins 3 & 6 = DIGITAL (Compatible with Panasonic Digital Telephones)
• Jack #3: Pins 4 & 5 = ANALOG (Generic Single Line Telephone or Single Central Office Trunk)
• Jack #4: Pins 3 & 6 = DIGITAL (Compatible with Panasonic Digital Telephones)

This product is essential for those looking to manage complex telecommunication setups efficiently.
