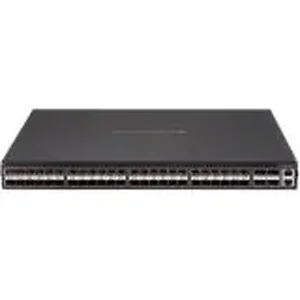

Supermicro SSE-X3348S 48-port 10gbe Rackmount Switch With 4-port 40gbe

• Compliance: RoHS
• Switching Features: Link Aggregation (24 groups with 8 members per group), LACP Support, Link Layer Discovery Protocol (802.1AB), Jumbo Frame Support, Port Mirroring (N to 1, Tx/Rx Configurable)
• Routing Features: Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3, BGP, IPv4 and IPv6 Routing, VRRP, DVMRP
• Port Attributes: 48 Ten Gigabit Ethernet ports (SFP+ Connectors), 4 Forty-Gigabit Ethernet ports (QSFP Connectors), 2 One-Gigabit Ethernet ports (RJ45 Connectors), Out-of-band RS-232 Management port
• Performance: Switching capacity of 1284 Gbps
• Availability: Spanning Tree (802.1D), Rapid Spanning Tree (802.1w), Multiple Spanning Trees (802.1s), Virtual Redundant Routing Protocol (VRRP)
• VLAN: 802.1Q tagging, port and protocol based, 4K VLANs, Dynamic VLAN Support (GVRP)
• Quality of Service: 8 priority queues per port, Adjusted WRR and Strict Priority Scheduling, Layer 2/3/4 Prioritization, Marking, Metering/Rate limiting
• Multicast: IGMP Snooping v1/v2/v3, IGMP v1/v2/v3, PIM SM, PIM DM, PIM SMv6
• Security: 802.1x Port Based Authentication, Switch access password protection, Layer 2/3/4 Access control Lists, RADIUS and TACACS+ Authentication, SSH/SSL Encryption
• Management: Web-based management interface, HTTP, HTTPS, Telnet (4 sessions), CLI with telnet/SSH/local management port, Scripting capability, Command completion, Context sensitive Help, Multiple levels of user privileges (CLI and Web UI), SNMP v1/v2/v3, Four RMON Groups (1, 2, 3, and 9), Logging - syslog, Dual firmware images, Configuration file - upload/download
• Power: Dual 400W Hot-swap Redundant Power Supplies, Power Consumption of 326W
• Dimensions: 18.6 x 17.3 x 1.7 inches
• Weight: 18.1 lbs
• Warranty: 1 Year
