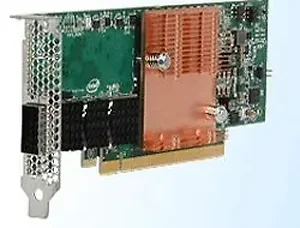

Supermicro AOC-SHFI-I1C 1-port Omni Path Controller Aoc-shfi-i1c

• Compatibility Matrices: Compatible with Supermicro Omni-Path Switch SSH-C48Q
• Compliance/Environmental: Complies with REACH Regulation (EC) No 1907/2006 and RoHS II Directive 2011/65/EU
• Bus Interface: PCI Express Gen3 x16
• Device Type: End Point
• Advanced Interrupts: MSI-X, INTx
• ASIC: Single Intel OP HFI ASIC
• Max Data Rate: 100 Gbps over PCIe x16
• Virtual Lanes: Configurable from one to eight VLs plus one management VL
• MTU: Configurable similar to Virtual Lanes
• Interfaces: Supports QSFP28 quad small form factor pluggable passive copper, optical transceivers, and active optical cables
• Port: One Intel OP 4X Host Fabric Interface QSFP28
• LED: Link status indicator (Green)
• Software Operating Systems: Red Hat Enterprise Linux, SUSE Enterprise Linux Server, CentOS, Scientific Linux
• Power Consumption: Copper: Typical 7.4W, Maximum 11.7W; Optical: Typical 10.6W, Maximum 14.9W
• Operating Temperature Range: 32°F to 104°F
• Storage Temperature Range: -40°C to 70°C
• Operating Relative Humidity: 5% to 85% (non-condensing)
• Storage Relative Humidity: 5% to 95% (non-condensing)
• Airflow Requirements: 200 LFM at 55°C local ambient
• Item Dimensions: 26 x 18 x 4 inches
• Weight: 2.00 lb
• Warranty: 1 Year
