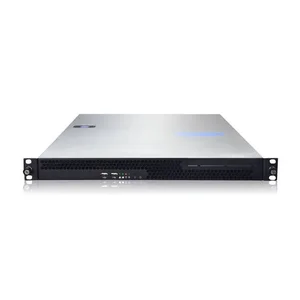

Gooxi AS101-S02SIL As101-s02sil Lga1150 1u Rackmount Server System

Specifications

• Motherboard: G1SA-4B
• Processor: LGA1150 compatible with Intel Xeon E3-1200 v3/v4, Core i3/i5/i7, Pentium, and Celeron processors
• Chipset: Intel Lynx point C222 PCH
• Memory: 4x 240pin DDR3-1600 DIMM slots, ECC, Unbuffered, max capacity of 64GB (supports 2GB, 4GB, 8GB, 16GB modules)
• Expansion Slots: 1x PCI-Express 3.0 x16 (runs at x8), 2x PCI-Express 2.0 x4 (run at x1), 1x full-height expansion slot
• SATA Ports: 2x SATA3 and 4x SATA2 ports
• LAN: 4x Intel i210-AT Gigabit Ethernet LAN controllers
• Drive Bays: 2x 3.5" internal SATA3/2 HDD bays with RAID; 2x 2.5" SATA3/2 HDD bays
• RAID Support: Supports RAID levels 0, 1, 5 (Windows only), 10
• USB Ports: 3x USB 3.0 (2 rear, 1 Type A), 4x USB 2.0 (2 rear, 2 via header)
• Form Factor: 1U Rackmount
• Power Supply: 400W Delta DPS-400YBB with input of 100-240V, 47Hz ~ 63Hz and output of +12V, +5V_SB
• System Cooling: 4x 40x28 fans, 13000 RPM (+/- 10%)
• Operating System Support: Windows Server 2008 R2/2012/2012 R2 (64bit), Windows SBS 2011 (64bit), Red Hat Enterprise Linux (32bit/64bit), Suse Enterprise Linux (32bit/64bit), Ubuntu Server (32bit/64bit)
• Dimensions: 17.05 x 17.70 x 1.71 inch / 450.0 x 433.0 x 43.5 mm
