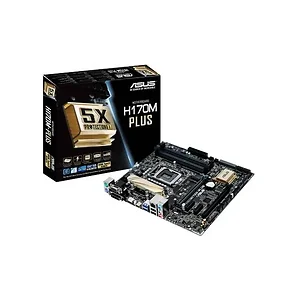

Asus H170M-PLUS/CSM H170m-plus Microatx Motherboard For Lga1151 Cpus

Specifications

• CPU: LGA1151
  Supports 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors and 14nm CPU technology.
• Chipset: Intel H170 Express
• Memory: 4x DDR4-2133 DIMM Slots, Dual Channel, non-ECC, unbuffered, max capacity of 64GB
• Slots: 2x PCI Express 3.0/2.0 x16 Slots (one max. at x4 mode, compatible with PCIe x1 and x4 devices), 2x PCI Express 3.0/2.0 x1 Slots
• Multi-Graphics: Supports AMD CrossFireX Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10; 1x SATA Express Port
  • M.2: 1x M.2 Port (type 2242/2260/2280), support for both SATA & PCI-Express Mode
• Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
• LAN: Intel I219-V Gigabit Ethernet Controller
• Ports: 6x USB 3.0/2.0 Ports (2 rear, 4 mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 mid-board), 1x USB 5Gb/s Port (Type C), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x DVI-D Port, 1x HDMI Port, 1x RGB Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24-pin EATX Power Connector, 1x 8-pin EATX 12V Power Connector
• Form Factor: Micro ATX, 9.60 x 8.95 inches / 24.4 x 22.7 cm

Request For Quote
