HARDWARE FEATURES Plug Type
EU, UK, US Standards and Protocols
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Interface
Gigabit Ethernet Port Button
Pair/Reset button Power Consumption
Maximum: 2.7W (220V/50Hz)
Typical: 2.3W (220V/50Hz)
Standby: 0.5W (220V/50Hz) LED Indicator
PWR, PLC, ETH Range
300 Meters over electrical circuit SOFTWARE FEATURES Modulation Technology
OFDM (PLC) Encryption
Powerline Security: 128-bit AES OTHERS Certification
CE, RoHS Package Contents
Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Quick Installation Guide System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing Item Dimension (L inchxW inchxH inch)
8 x 6 x 4

Weight
2.00 lb

Warranty Information
2 years

Request For Quote

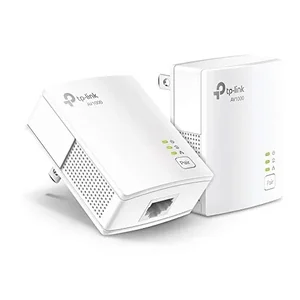

Tplink TL-PA7017 KIT Av1000 Gigabit Powerline Starter Kit
