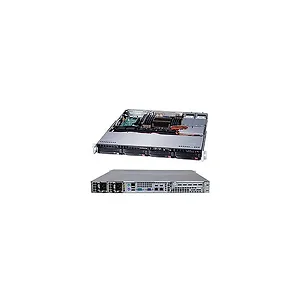

Supermicro SYS-5017R-MTRF Bbns 1u Rackmount Server With Intel C602 Chipset

• Specifications
• Processor: LGA2011, supports Intel Xeon E5-2600 Family Processors with cache up to 20MB and QPI up to 8 GT/s.
• Chipset: Intel C602.
• Memory: 8x 240pin DDR3-1600/1333/1066 DIMM slots, supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory.
• Slots: 1x PCI-Express 3.0 x16 Slot (Full-height).
• SATA: 2x SATA3 Ports, 4x SATA2 Ports, supports RAID 0, 1, 5, 10 (Windows), RAID 0, 1, 10 (Linux).
• Video: Matrox G200eW Graphics with 16MB DDR2 Video Memory.
• LAN: Intel i350 Dual Port Gigabit Ethernet Controllers, 1x Realtek RTL8201N PHY (dedicated IPMI).
• Drive Bays: 4x 3.5" Hot-swap Drive Bays.
• Backplane: SAS/SATA HDD Backplane (SAS support requires optional SAS controller).
• Ports: 9x USB 2.0 Ports (2 rear, 6 via headers, 1 Type A), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port.
• Form Factor: 1U Rackmount.
• Power Supply: 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level Power Supply with PMBus and I2C.
• System Cooling: 4x (40 x 28mm) 4-pin PWM Cooling Fans.
• Front Panel:
  • Buttons: Power On/Off, System Reset.
  • LEDs: Power, HDD Activity, 2x Network Activity, System Overheat.
• Color: Black.
• Dimensions (WxDxH): 17.20 x 19.85 x 1.70 inch / 437.0 x 503.0 x 43.0 mm.
• Gross Weight: 38.0 lbs / 16.5 kg.
• RoHS Compliant
