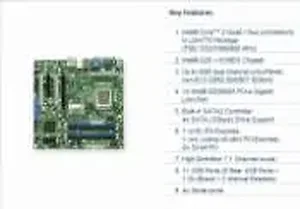

Supermicro MBD-C2SBM-Q-O C2sbm Q O Core 2 Quad Intel Q35 Ddr2 Sata2 A V Gbe Mini Atx Server Motherboard

MATX MBD LGA775 Q35 8GB GETH 4X SATA HD SUPERMICRO C2SBM-Q - Motherboard - micro ATX - LGA775 Socket - Q35 - Gigabit LAN - onboard graphics - HD Audio (8-channel) Supermicro motherboards based on the Intel Q35 chipset support Intel's Core 2 Quad / Duo processors. Supermicro's Q35 boards are designed for embedded applications that require long life and continuous operation in high-temperature environments.

Main Specifications

Product Description	SUPERMICRO C2SBM-Q - motherboard - micro ATX - LGA775 Socket - Q35
Product Type	Motherboard - micro ATX
Chipset Type	Intel Q35 Express / Intel ICH9DO
Processor Socket	1 x LGA775 Socket
Compatible Processors	Core 2 Duo, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence
Max RAM Size	8 GB
RAM Supported	4 DIMM slots - DDR2 , non-ECC , unbuffered
Storage Ports	4 x SATA
USB Ports Configuration	11 x USB
Graphics	Intel GMA 3100
Audio	HD Audio (8-channel)
LAN	Gigabit Ethernet
Microsoft Certification	Compatible with Windows 7

Extended Specifications

General

Product Type Motherboard - micro ATX Chipset Type Intel Q35 Express / Intel ICH9DO Max Bus Speed 1333 MHz Processor Socket LGA775 Socket Max Processors Qty 1 Compatible Processors Core 2 Duo, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence

Supported RAM

Max Size 8 GB Technology DDR2 Bus Clock 800 MHz, 667 MHz Speed PC2-6400, PC2-5300 Data Integrity Check Non-ECC Registered or Buffered Unbuffered Features Dual channel memory architecture

Graphics

Graphics Controller Intel GMA 3100 Memory Allocation Technology Dynamic Video Memory Technology 4.0

Audio

Type HD Audio (8-channel) Audio Codec Realtek ALC883 Compliant Standards High Definition Audio

LAN

Network Controller Intel 82566DM Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slot(s) 1 x CPU 4 x DIMM 240-pin ( 1.8 V ) 1 x PCIe x16 1 x PCIe x8 2 x PCI ( 5 V ) Storage Interfaces Intel ICH9DO : SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 Intel ICH9DO : ATA-100 - connector(s): 1 x 40pin IDC - 2 device(s) Interfaces 1 x LAN (Gigabit Ethernet) 7 x USB 2.0 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out (side surround) - mini-jack 1 x audio line-out (back surround) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x VGA 1 x PS/2 keyboard 1 x PS/2 mouse 2 x serial Additional Connectors (Optional) 4 x Hi-Speed USB Power Connectors 4-pin ATX12V connector, 24-pin main power connector

Features

BIOS Type Phoenix BIOS Features ACPI 1.0 support, power failure recovery (AC loss resume), DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage Sleep / Wake Up Keyboard wake up, suspend to RAM (STR), wake on LAN (WOL), wake on ring (WOR) Hardware Features Chassis intrusion detection, Watch Dog Timer, Trusted Platform Module (TPM)

Miscellaneous

Software Included Drivers & utilities, SuperO Doctor III Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. Compliant Standards Plug and Play, ACPI, RoHS Width 9.6 in Depth 9.6 in
