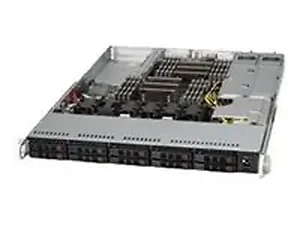

Supermicro CSE-116TQ-R706WB Cse-116tq-r706wb 1u Rackmount Case With Power Supply

• Form Factor: 1U chassis for up to 12" x 13" motherboards.
• Processor Support: Compatible with dual or single Intel/AMD processors.
• Expansion Slots: 2 full-height, 1 low-profile expansion slot.
• Drive Bays: 10x 2.5" hot-swap SAS/SATA internal drive bays (SAS or enterprise SATA HDD recommended).
• Backplane: BPN-SAS-116TQ for 10x2.5 Hot-swap SAS/SATA HDD.
• Front Panel: Includes Power On/Off button, UID button, and multiple LEDs for status indication.
• Fan Configuration: 4x 40x56mm counter-rotation PWM fans; optional additional fans for AOC cooling.
• System Monitoring: Chassis intrusion switch for enhanced security.
• Operating Temperature: 5°C - 35°C (41°F - 95°F) with a non-operating range of -40°C - 70°C (-40°F - 158°F).
• Humidity Requirements: Operating range of 8% - 90% (non-condensing), non-operating range of 5% - 95% (non-condensing).
• Power Supply: 1U 700/750W Single Output Platinum power supply, 54.5mm width.
• AC Voltage: 700W: 100 - 140V, 50-60Hz; 750W: 180 - 240V, 60-50Hz.
• DC Outputs: +5V standby at 3A; +12V at 58A (700W) or 62A (750W).
• Compliance: UL listed, FCC, CUL listed, TUV Certified, EN 60950/IEC 60950-Compliant.
• Weight: 35 lbs.
• Warranty: 1-year warranty included.
