Form Factor
1U chassis for motherboard support size of Proprietary 12.3" x 13", Proprietary 8.15" x 13.05"
Processor Support
Supports dual, single Intel / AMD processors Available Color
Black
Expansion Slots
2 full height expansion slot(s)
Drive Bays
Internal Bay
Up to 2x 2.5" fixed with bracket
SAS or enterprise SATA HDD only recommended Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED System Cooling
Fans
4x 40x56mm PWM fan
2x fans for AOC cooling
System Monitoring
Chassis intrusion switch Power Supply
400W SuperCompact Short-depth AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage
400W: 100-240 V, 50-60 Hz, 6-3 Amp
DC Output +5V standby
3 Amp
DC Output +5V standby
3 Amp
With Power Distributor
+5V: 25 Amp
+3.3V: 25 Amp
-12V: 0.6 Amp Power Supply
400W SuperCompact Short-depth AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage
400W: 100-240 V, 50-60 Hz, 6-3 Amp
DC Output +5V standby
3 Amp
DC Output +5V standby
3 Amp
With Power Distributor
+5V: 25 Amp
+3.3V: 25 Amp
-12V: 0.6 Amp Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant Item Dimension (L"xW"xH"):
16.8 x 17.2 x 1.7
Weight:
18 lb
Warranty Information:
1 Year
- Manufacturer:
- Model Number:
- ASIN:
- Condition:
- Weight:
- Dimensions:
- Updated:
- Added:
- Supermicro

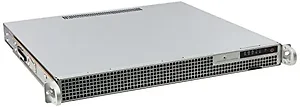

- CSE-514-R400C
- B00SWM725E
- New
- 18 lbs
-
17 X
2 X
17
-
Sep 04, 2025
-
Oct 27, 2014
