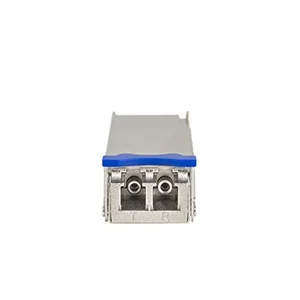

Startech 8H9743 Cisco Qsfp-40g-lr4-s Comp. Qsfp+ Module - 40gbase-lr4 - 40ge Gigabit Ethernet 40gbe Single Mode Fiber Smf Optic Transceiver - Cisco Qsfp-40g-lr4-s Compatible Qsfp+ - 40gbase-lr4 40 Gbps - 40gbe Module - 40ge Gigabit Ethernet Qsfp+ 1270nm To 1330nm - Single Mode (smf) Transceiver - 10km (6.2mi) - Lc Connector Ddm - Hot-swappable Msa Compliant - Lifetime Warranty

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:QSFP40GLR4S
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Cisco QSFP-40G-LR4-S Compatible QSFP+ Transceiver Module - 40GBASE-LR4
Marketing Information:

The QSFP40GLR4S is a Cisco QSFP-40G-LR4-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Packaged Quantity:1
Product Type:QSFP+

Technical Information

---

Application/Usage:

• Data Networking
• Optical Network

Interfaces/Ports

---

Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 40GBase-LR4 Network

Media & Performance

---

Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:40 Gigabit Ethernet
Network Technology:40GBase-LR4

Physical Characteristics

---

Form Factor:

• Hot-pluggable
• Hot-swappable

Height:0.5"
Width:0.7"
Depth:2.8"
Weight (Approximate):0.10 lb

Miscellaneous

---

Compatibility:

• MSA Compliant

Cisco Firepower Switches:

• ASR1000
• ASR9000
• C9300
• C3850

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• WEEE
• REACH

Country of Origin:China

Warranty

---

Limited Warranty:Lifetime
