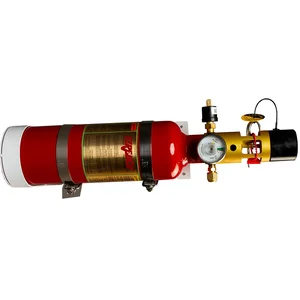

MU Series Clean Agent Fire Extinguisher - 225 Cubic Feet

Enhancing Fireboy's product line, this manual/automatic extinguisher is engineered for horizontal mounting. It utilizes the FK-5-1-12 clean extinguishing agent, ensuring maximum firefighting efficiency when placed in a horizontal configuration.

Why Choose Fireboy-Xintex:

• Continuous protection against fires
• Automatic operation for rapid response
• Manual operation via pull cable for flexibility
• Peace of mind with advanced fire suppression
• Early detection and suppression capabilities
• International system approvals (FM, USCG, CE, RINA, BV)
• FK-5-1-12 Clean Agent approved for global marine use
• Effective for Class B fires in engine rooms and industrial settings

Applications:

• Environmentally sound with very low global warming potential (GWP <1)
• Low toxicity, ensuring personnel safety
• No damage to delicate equipment during operation
• Effective coverage for engine rooms and similar spaces
• Factory Mutual and USCG approved for reliable safety

Effectively Extinguish Fires Before They Spread

The FK-5-1-12 clean agent is a highly efficient fire suppressant that can extinguish fires in their incipient stage, preventing them from escalating.

It evaporates over 50 times faster than water, transforming from liquid to gas quickly, achieving effective vapor concentrations in the air.

• Low toxicity, ensuring safety for personnel
• Quicker extinguishment compared to CO2 and other inert gases
• No risk of damage to sensitive equipment
• Not subject to emission reduction or phase-out regulations

Installation Ready

Each Fireboy system comes equipped with a heavy-duty powder-coated steel shelf bracket system, helm display, and detailed owner's manual for easy setup.

Specifications:

• Volume Protected: 225 ft.³ (6.4 m³)
• Diameter: 6.3 in. (160 mm)
• Agent Weight: 12.7 lbs. (5.8 kgs)
• Shipping Weight: 17.2 lbs. (8 kgs)
• System Pressure: 360 psi @ 70 degrees F
