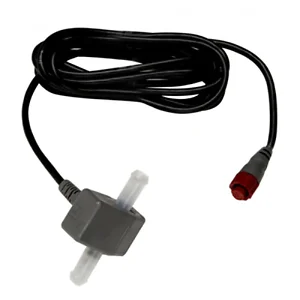

Name: Lowrance Lowrance Fuel Flow Sensor w-10' Cable & T-Connector
Brand: Lowrance
SKU: cbkk0fatfw
Price: 203.39 USD
Availability: InStock
Rating: 5 (1 reviews)

SKU: CBKK0FATFW | Mfg. Part: 000-11517-001 | UPC: 9420024129852 |

1 Reviews | Share

Lowrance Lowrance Fuel Flow Sensor w-10' Cable & T-Connector

Lowrance 000-11517-001 Fuel Flow Sensor W-10' Cable T-connector

2 Available
Condition: New

$203.39 ~~$274.58~~

Free Shipping for this Item

Lowrance N2K Fuel Flow Sensor

Model: 000-11517-001

Displays current fuel rate or fuel flow
Tracks fuel used, trip fuel used and seasonal fuel used
For gasoline engines only. Does not work with diesel engines or any fuel system with a return fuel line or sump
Calculates fuel economy with networked speed source (GPS or Speed Sensor)

The Fuel Flow Sensor tracks engine fuel flow, fuel used, trip fuel used and seasonal fuel used ? sharing the information with any compatible display unit connected to the NMEA 2000® network. With a speed source in the network, the Fuel Flow Sensor can also calculate fuel economy.

What's in the Box:

Fuel Flow Sensor
2 1" hose clamps
N2K T-connector

Fuel Flow Sensor with 10 cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

Fuel Flow
Tank Fuel Used
Trip Fuel Used
Seasonal Fuel Used

Cable Length:10
Fuel Line Diameter:3/8 (9.5mm) Inside Diameter
Flow Rate Measured:Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system:0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location:Above the max level of the fuel tank, in-line after the fuel filter and any Ys or Ts in the line
Package:The Fuel Flow Sensor, N2K T and 2 (two) 1 hose clamps
Fuel Type:Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead:22mm (7/8)
Multiple Fule Flow sensors possible:Yes
