Heise HE-BD22 Heise 22" Blackout Series Dual Row Led Lightbar

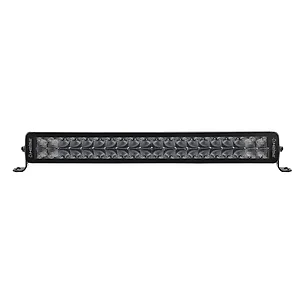

HEISE 22" Blackout Series Dual Row LED Lightbar

The HEISE Blackout Series LED lightbar offers a perfect fusion of style and functionality. This latest generation features a clean, minimal design with upgraded optics that provide enhanced control over the beam's location and pattern. Designed to meet the needs of both vehicles and drivers, it delivers tailored lighting coverage.

Featuring a hybrid beam pattern consisting of a 90° flood and 8° spot, this lightbar offers intensively focused light in the center while maximizing peripheral illumination with widebeam lights on the sides. Plus, the protective vent port design ensures moisture management, keeping your lightbar in optimal condition.

Key Features:

• Input Voltage: 10-30V DC
• Color Temperature: 5700K
• Beam Pattern: Combo 90° Flood / 8° Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Membrane: Protective Vent Port
• Lens Material: Polycarbonate
• Mounting Bolt Drill: 0.25”
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40°F to +140°F
• Protection: Reverse Polarity
• Mounting: Side & Rear
• Limited Lifetime Warranty

Specifications:

• Length: 22”
• Wattage: 200W
• Raw Lumens: 16,800lm
• Lux at 10m: 6461
• Current Consumption @ 13.8V: 6.7A
• IP Rating: IP67

Vehicle Applications:

• Universal
