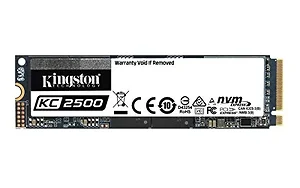

Kingston SKC2500M8/500G Technology

Form Factor
M.2 2280 Interface
NVMe^TM PCIe Gen 3.0 x 4 Lanes Capacities
500GB Controller
SMI 2262EN NAND
96-layer 3D TLC Encrypted
XTS-AES 256 bit Sequential Read/Write
500GB - up to 3,500/2,500MB/s Random Read/Write
500GB - up to 375,000/300,000 IOPS Total Bytes Written (TBW)
500GB - 300TBW Power Consumption
.003W Idle / .2W Avg / 2.1 (MAX) Read / 7W (MAX) Write Storage Temperature
-40^oC to 85^oC Operating Temperature
0^oC to 70^oC Vibration operating
2.17G Peak (7-800Hz) Vibration non-operating
20G Peak (20-1000Hz) MTBF
2,000,000 hours Item Dimension (L inchxW inchxH inch)
1 x 6 x 8
Weight
1.00lb
Warranty Information
Limited 5-year warranty with free technical support

Request For Quote
