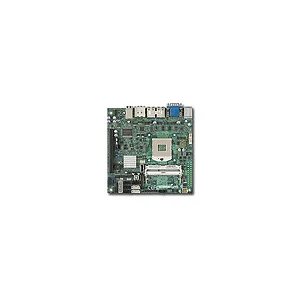

X9SCV-QV4-O | Supermicro Intel QM67 Mini-ITX Motherboard

Supermicro X9SCV-QV4-O Intel Qm67 Mini-itx Motherboard With 16gb Ram Support

Name: Supermicro Intel QM67 Mini-ITX Motherboard with 16GB RAM Support
Brand: Supermicro
SKU: X9SCV-QV4-O
Price: 273.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Out of Stock
Condition: New

$273.40 ~~$369.09~~

Free Shipping for this Item

The Intel QM67 Mini-ITX Motherboard is designed for robust performance and versatility, supporting a range of Intel processors. With two DDR3 slots for up to 16GB of memory, it's perfect for compact builds that require high performance. The board comes with multiple SATA ports for extensive storage options and integrated Intel graphics for an efficient visual experience.

CPU Compatibility: Socket G2 (rPGA 988B) supporting Intel 2nd Generation Core i7/i5/i3, and Celeron B800 Series Processors.
Chipset: Intel QM67.
Memory: 2x 204pin DDR3-1333/1066 SODIMM Slots, Non-ECC, Unbuffered, Max Capacity of 16GB.
Expansion Slots: 1x PCI-Express 2.0 x16 Slot.
SATA Ports: 4x SATA2 (RAID 0, 1, 5, 10) and 2x SATA3 (RAID 0, 1).
Audio: Realtek ALC889 High Definition Audio CODEC.
Video: Integrated Intel Graphics Controller.
LAN: Dual Gigabit Ethernet Controller (Intel 82579LM and 82574L).
USB Ports: Total of 11 USB 2.0 Ports (6 rear, 4 via headers, 1 type A).
Additional Ports: 2x Serial Ports, 1x VGA Port, 2x HDMI Ports, 2x RJ45 LAN Ports.
Form Factor: Mini-ITX, dimensions 6.75 x 6.75 inch (17.15 x 17.15 cm).
Compliance: RoHS Compliant.
