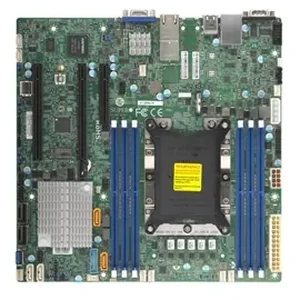

Supermicro MBD-X11SPM-TF-B Mbd-x11spm-tf-b Xeon Motherboard - Atx

Name: Supermicro MBD-X11SPM-TF-B Xeon Motherboard - ATX
Brand: Supermicro
SKU: MBD-X11SPM-TF-B
Price: 610.41 USD
Availability: InStock
Rating: 5 (3 reviews)

Out of Stock / 1 Sold
Condition: New

$610.41 ~~$824.05~~

Free Shipping for this Item

The Supermicro MBD-X11SPM-TF-B motherboard is designed for Intel Xeon Scalable processors, offering a reliable solution for high-performance computing. With support for a single Socket 3647 CPU and a maximum memory capacity of 768GB, this motherboard is perfect for servers and workstations that require robust computing capabilities.

Featuring enhanced connectivity with dual 10GBase-T LAN ports and multiple SATA3 ports for RAID configurations, it provides exceptional performance for data-intensive applications. Additionally, the motherboard includes comprehensive management features with built-in IPMI support.

Form Factor: microATX
Supported CPU: Intel Xeon Processor Scalable Family, Single Socket P (LGA 3647), CPU TDP support up to 165W
Cores / Cache: Supports up to 28 cores
Memory Capacity: 6x 288-pin DDR4 DIMM slots, up to 768GB ECC 3DS LRDIMM, 384GB ECC LRDIMM, or 192GB ECC RDIMM
Memory Type: 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes: RDIMM: 4GB, 8GB, 16GB, 32GB; LRDIMM: 32GB, 64GB; 3DS LRDIMM: 64GB, 128GB
Memory Voltage: 1.2V
Error Detection: Corrects single-bit errors
Chipset: Intel C622
SATA: Intel C622 controller for 12 SATA3 (6 Gbps) ports with RAID support (0, 1, 5, 10)
IPMI: ASPEED AST2500
Network Controllers: Dual LAN with 10GBase-T, Intel X722 + X557
Graphics: Aspeed AST2500 BMC
USB Ports: 6 USB 2.0 ports (2 rear + 4 via header), 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
Video Output: 1 VGA port
Serial Port / Header: 2 COM Ports (1 rear, 1 header)
TPM: TPM Header
PCI-E Slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
M.2: Interface: PCIe 3.0 x4; Form Factor: 2242, 2280
BIOS Type: AMI UEFI
