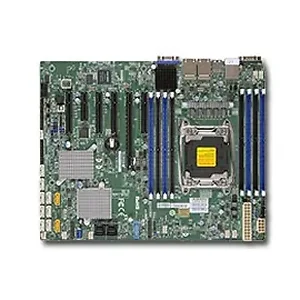

Supermicro X10SRH-CLN4F-O(3YR) X10srh-cln4f-o Motherboard With E5-2600 Support

• Form Factor: ATX
• CPU Support: Intel Xeon E5-2600 v4/v3, E5-1600 v3 (up to 145W TDP), Single Socket R3 (LGA 2011)
• Core / Cache: Up to 22 Cores / Up to 55MB Cache
• Memory Capacity: 8x 288-pin DDR4 DIMM slots (up to 1TB ECC 3DS LRDIMM, 512GB ECC LRDIMM, 256GB ECC RDIMM)
• Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM (RDIMM / LRDIMM)
• Memory Voltage: 1.2 V
• Error Detection: Corrects single-bit errors, detects double-bit errors (using ECC memory)
• Chipset: Intel C612
• SAS: 8x SAS3 (12Gbps) ports with SW RAID options
• SATA: 10x SATA3 (6Gbps) ports with RAID support
• IPMI: Intelligent Platform Management Interface v.2.0 with KVM-over-LAN
• Network Controllers: Intel i350-AM4 Quad Port Gigabit Ethernet
• Graphics: ASPEED AST2400 BMC
• USB Ports: 4x USB 3.0 and 8x USB 2.0
• Video Output: 1x VGA port
• Serial Ports: 2x fast UART 16550 serial ports
• SuperDOM: 2x SuperDOM ports with built-in power
• TPM: 1x TPM 1.2 20-pin Header
• PCI-Express Slots: Multiple PCI-E slots for expandability

Request For Quote

Supermicro X10SRH-CLN4F-O(3YR) X10srh-cln4f-o Motherboard With E5-2600 Support
