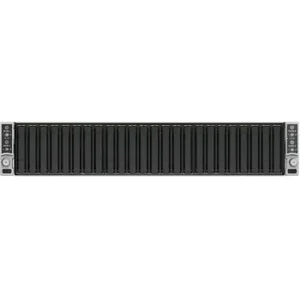

Intel HNS2600BPQ Node - No Cpu - 0.00ghz - 124 Drive Chassis

• Processor: Supports up to two Intel Xeon processor Scalable family.
• Maximum Processor TDP: 165W for Board and Compute Model; 140W/165W for Intel Chassis.
• Chipset: Intel C628 chipset.
• Memory: 16 DIMM slots (8 per CPU) supporting DDR4 RDIMM/LRDIMM, up to 2666 MT/s, 1.2V.
• Storage Support: Dependent on optional Bridge Board accessory.
• M.2 Slots: One on-board 42mm M.2 STAT/PCIe x4 + One Riser 2 80mm M.2 STAT/PCIe x4.
• Networking: Dual 10GBase-T ports.
• Intel QuickAssist Technology: Yes.
• USB: Dual stacked rear panel USB 3.0 ports.
• Video: DB-15 Rear Panel VGA Video connector on Riser 2, 16MB DDR4 video memory.
• Bridge Board Slot: See supported Bridge Board Optional.
• Riser Slot 1 (CPU1): Default: Video Adapter; Optional: Support for Intel Omni-Path fabric.
• Riser Slot 2 (CPU1): One PCIe Slot x16 electrical/x16 mechanical, low profile cards only.
• Riser Slot 3 & 4: Not available with Bridge Board installed.
• Server Management: Integrated Baseboard Management Controller, IPMI 2.0 compliant with dedicated RJ45 management port.
• Fans: Three 40x56mm dual rotor system fans.
• Item Dimensions: 26 x 7 x 2 inches.
• Weight: 3.00 lbs.
• Warranty: 3-year standard warranty.
