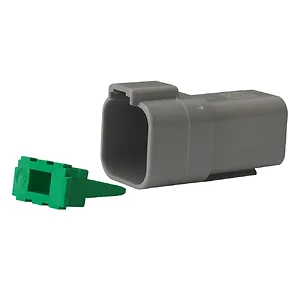

Pacer TDT04-6P-5 Pacer Deutsch Dt Receptacle Wedge Lock Kit - 6 Position

Deutsch DT Receptacle & Wedge Lock Kit - 6 Position

Protecting electrical connections is crucial, and Deutsch Connectors excel in this area. The DT Kit connectors are designed to establish environmentally sealed electrical connections that are waterproof and resistant to vibration and shock, ensuring durability for any application. Ideal for 20-14 AWG setups, these connectors allow the use of multiple size 16 contacts. Perfect for field use, the DT Kits are straightforward to install and detach. Please note, this kit includes only the housing and wedge lock; contacting us for additional pins and sockets is recommended.

Features:

• Kits include housing (5 pieces) and wedge lock (5 pieces)

Applications:

• Wire-to-wire applications
• Designed for reliability and rugged quality in the field

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant silicone seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• Meets EU RoHS/ELV requirements
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 6
• Cavity Style: Receptacle (Pin)
• Package Size: 5
• Housing: Rectangular Receptacle, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55°C to 125°C
