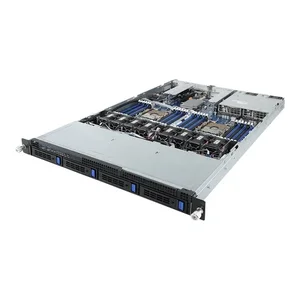

Gigabyte R181-340 R181-340 1u Dual Lga3647 Rackmount Server

Specifications

• Motherboard: MR91-FS0
• Processor: Dual LGA3647
  • Supports Intel Xeon Scalable Family Processor
  • Compatible with Intel Xeon Platinum, Gold, Silver, and Bronze Processors
  • TDP up to 205W
• Chipset: Intel C621 Express
• Memory: 24x DDR4-2666/2400/2133 MHz DIMM Slots, 6-channel
  • Supports RDIMM modules up to 64GB
  • Supports LRDIMM modules up to 128GB
• Slots:
  • Riser Card CRS1021: 2x PCI-Express 3.0 x8 Slots, Low profile half-length
  • Riser Card CRS1015: 1x PCI-Express 3.0 x16 Slot, Low profile half-length
  • 2x OCP mezzanine slots: PCI-Express 3.0 x16
• SATA: 1x 7-pin SATA3 with SATA DOM supported
• SAS: Supported via add-on SAS Card
• Video: Integrated Aspeed AST2500 Graphics
• LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers; 1x 10/100/1000 Management LAN
• Drive Bays: 4x 3.5" SATA/SAS hot-swappable HDD/SSD bays (2.5" HDD/SSD supported)
• Ports: 4x USB 3.0 Ports (2 rear, 2 front), 1x VGA Port, 2x RJ45 LAN Ports, 1x MLAN Port
• Form Factor: 1U Rackmount
• Power Supply: 2x 1200W 80 PLUS Platinum Redundant Power Supply
• System Cooling: 8x (40x40x56mm) Fans (23000rpm)
• Dimensions (WxDxH): 438.0 x 730.0 x 43.5 mm
• Weight: 13.0 kg
