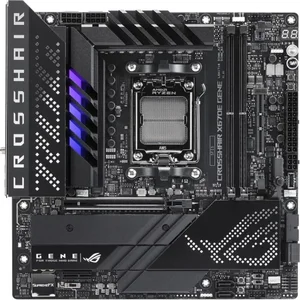

Asus ROGCROSSHAIRX670EGENE Rog Crosshair X670e Gene Wifi 6e Socket Am5(lga 1718) Ryzen 7000 Matx Gaming Motherboard (16+2 Power Stages, Pcie 5.0, Ddr5, Usb 3.2 Gen 2x2 Front-panel, Usb4 Ports, Wi-fi 6e)

Product Description

ASUS ROG CROSSHAIR X670E GENE WIFI 6E is the perfect backbone for gamers who pursue ultimate performance out of AMD Ryzen 7000 CPU in a compact formfactor. With boosted power delivery and innovative cooling utilizing a skived-fin design, ROG STRIX X670E-I GAMING WIFI 6E is the perfect compact platform for your next gaming battle station.

ROG CROSSHAIR X670E GENE

Formed by splicing the ROG DNA and mixing in an SFF enzyme, the ROG Crosshair X670E Gene is a mATX powerhouse that lets you have it all. With bulked-up power delivery and heatsinks, it dishes up a full-fat serving of AMD Ryzen 7000 Series processors, alongside a digestible blend of PCIe 5.0, DDR5, WiFi 6E, and USB4 for enthusiasts that want a compact AM5 build on the desktop.

• Robust 16 + 2 teamed power solutions rated for 110A per stage
• Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
• 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
• Both the on-board M.2 slot and x16 slot are PCIe Gen 5-ready
• ROG GEN-Z.2 adds a Gen 5 and Gen 4 M.2 slot inside a DIY-friendly heatsink shell
• AI Cooling II uniquely balances noise and thermals for your system with a single click
• Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
• Dual USB4 Type-C ports for up to 40 Gbps bidirectional bandwidth

DYNAMIC OC SWITCHER

Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher lets you use them both, dynamically engaging PBO or your preferred settings based on the CPU current or temperature.

CORE FLEX

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize the base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

TEAMED POWER ARCHITECTURE

Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep powersaving modes, going from a lower power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

DDR5 MEMORY

Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the Crosshair X670E lineup, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme speed kit or an entry-level set that would otherwise be locked.

PCIE 5.0

Fully embracing the new standard, the ROG Crosshair X670E Gene offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

COOLER BY DESIGN

1. VRM heatsinks and heatpipe

2. M.2 heatsink and backplate

3. High-conductivity thermal pads

4. Chipset heatsink

TWO USB4 TYPE-C PORTS

Each USB4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In the ROG Crosshair X670E Gene, SupremeFX features the ALC4080 codec for immersive 384 kHz resolution audio across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving a wide variety of gaming headsets and high-fidelity headphones.

GROW YOUR GAMING WORLD WITH AURA SYNC

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

About this item

• AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors
• Intelligent Control: ASUS-exclusive tools including AI Cooling II, AI Networking, Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 16 + 2 teamed power stages rated for 110A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, ROG GEN-Z.2, high-conductivity thermal pad, triple M.2 heatsinks and single M.2 with embedded backplate
• High-Performance Networking: Onboard Wi-Fi 6E, Intel 2.5 Gb Ethernet, and ASUS LANGaurd
