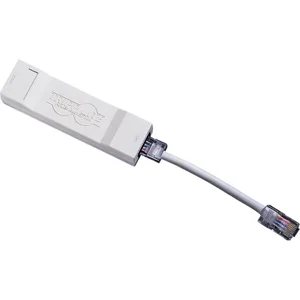

- DNET1 protects network workstations, printers and internetworking devices from surges present on 10/100Base-T, token ring, AS400 / Sys3x or RS422 network lines - Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 7.5V clamping) - 5 inch ethernet patch cable enables ideal protection placed as close as possible to the point of use - Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground - 6 inch heavy gauge grounding lead connects to designated grounding lugs on protected equipment - TYPICAL APPLICATIONS - Ideal for the protection of network workstations, printers and other internetworking devices with a network ethernet connection .Ideal for NICs, terminals, hubs, MAUs, LAN equipment - PACKAGE INCLUDES - DNET1 dataline protector , 5-in. RJ45 patch cable , Warranty information and instruction manual - System overview - Protects 100Base-T, 10Base-T, Token Ring, AS400/Sys3x, RS422. RJ11/45 compatible. - Additional Dataline protection - Protects pins 1-8 of an 8 position RJ connector. Peak pulse clamping voltage - 7.5V. Max current 750 amps. Shunt capacity 30pF.
- Manufacturer:
- Model Number:
- ASIN:
- Condition:
- Weight:
- Dimensions:
- Updated:
- Added:
- Country of Origin:
- Tripp Lite
- DNET1
- B0000510HR
- New
- 1 lbs
-
6 X
2 X
3
-
Today - Dec 28, 2025
-
Mar 01, 2020
- China
