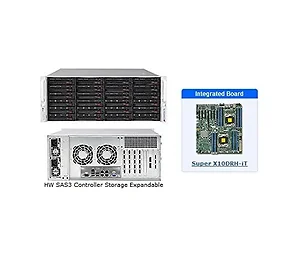

Supermicro SSG-6048R-E1CR24H 4u Rackmount Server Ssg-6048r-e1cr24h

• Motherboard: Super X10DRH-iT
• CPU: Intel Xeon E5-2600 v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
• Cores / Cache: Up to 18 Cores / Up to 45MB Cache
• System Bus: QPI up to 9.6 GT/s
• Memory Capacity: 16x 288-pin DDR4 DIMM slots, Up to 1TB ECC, LRDIMM, 512GB ECC RDIMM
• Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
• DIMM Sizes: RDIMM: 32GB, 16GB, 8GB, 4GB; LRDIMM: 64GB, 32GB
• Memory Voltage: 1.2 V
• Error Detection: Corrects single-bit errors
• Chipset: Intel C612 chipset
• SAS: SAS3 (12Gbps) via LSI 3108 AOC HW RAID
• SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
• IPMI: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2400 BMC
• Network Controllers: Intel X540 Dual Port 10GbE, Virtual Machine Device Queues
• Graphics: ASPEED AST2400 BMC
• LAN: 2x RJ45 10GBase-T LAN ports, 1x RJ45 Dedicated IPMI LAN port
• USB: 2x USB 3.0 ports (rear), 2x USB 2.0 ports (rear), 1x Type A
• VGA: 1x VGA port
• Serial Port / Header: 1x Fast UART 16550 port / 1 Header
• Form Factor: 4U Rackmount
• Model: CSE-846BE1C-R920B
• Fans: 2x 80mm hot-swap rear exhaust cooling fans
• AC Input: 100-240 V, 50-60 Hz, 11-4.5 Amp
• DC Output: 4 Amp at +5V standby, 75 Amp at +12V
• Weight: 92.00 lb
• Warranty Information: 1 Year
