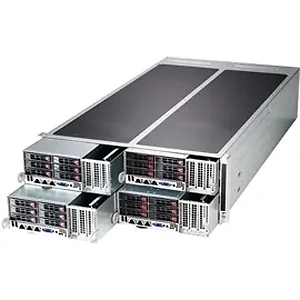

Supermicro SYS-F628R2-FTPT+ 4u Rackmount System With Dual Xeon E5-2600

• CPU: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP)
• Socket: Dual Socket R3 (LGA 2011)
• Cores/Cache: Up to 22 Cores / Up to 55MB Cache
• System Bus: QPI up to 9.6 GT/s
• Memory Capacity: 16x 288-pin DDR4 DIMM slots, Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
• Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
• DIM Sizes: RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB; LRDIMM: 64GB, 32GB; 3DS LRDIMM: 128GB
• Memory Voltage: 1.2 V
• Error Detection: Corrects single-bit errors
• Chipset: Intel C612 chipset
• SATA: SATA3 (6Gbps) with RAID 0, 1, 10
• IPMI: Supports IPMI v.2.0 with virtual media over LAN and KVM-over-LAN support; ASPEED AST2400 BMC
• Network Controllers: Intel X540 Dual Port 10GBase-T, Realtek RTL8211E PHY (dedicated IPMI)
• Graphics: ASPEED AST2400 BMC
• SATA Ports: 6x SATA3 (6Gbps)
• LAN: 2x RJ45 10GBase-T LAN ports, 1x RJ45 Dedicated IPMI LAN port
• USB: 2x USB 3.0 ports
• VGA: 1x VGA port
• Form Factor: 4U Rackmount
• Buttons: Power On/Off button, UID button
• LEDs: Power status LED, Hard drive activity LED, 2x Network activity LEDs
