Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, Interface
24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF Fan Quantity
Fanless Power Supply
100 to 240V AC 50/60Hz Power Consumption
Maximum: 23.2W (220V/50Hz) Bandwidth/Backplane
56Gbps MAC Address Table
16k Packet Buffer Memory
41.7 Mpps Jumbo Frame
9216 Bytes Quality of Service
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Voice VLAN L2 and L2+ Features
Static Routing
IGMP Snooping V1/V2/V3
802.3ad LACP(Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control VLAN
Supports IEEE 802.1Q up with 4k VLANs simultaneously (out of 4K VIDs)
Mac based VLAN
Protocol Based VLAN Access Control List
L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports Security
SSH v1/v2
SSL v3/TLS v1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1x and Radius Authentication
IP-MAC-Port Binding
ARP Inspection
Dos Defend IPv6
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6 IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP Management
Web-based GUI
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: Web
System Diagnose: VCT
SYSLOG Public MIBS
Dual Image Certification
CE, FCC, RoHS System Requirements
Microsoft Windows XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- Manufacturer:
- Model Number:
- ASIN:
- Condition:
- Weight:
- Dimensions:
- Updated:
- Added:
- TPLINK

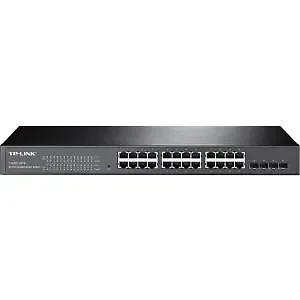

- T1600G-28TS
- B016M1QTS2
- New
- 6.5 lbs
-
0 X
0 X
0
-
Sep 04, 2025
-
Feb 29, 2020
