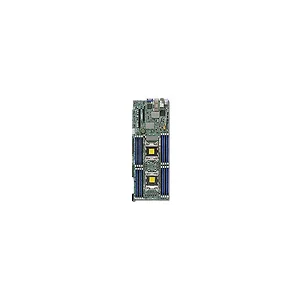

Supermicro X9DRFR-P X9drfr-p Dual Lga2011 Server Motherboard

Specifications

• CPU: Dual LGA2011
  • Supports Intel Xeon E5-2600 and E5-2600 v2 Processors
  • Cache up to 30MB
  • QPI up to 8 GT/s
  • Supports up to 130W TDP
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1866/1600/1333/1066/800 DIMM Slots, supporting up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x8 Slot (Micro Low Profile), 1x PCI-Express 3.0 x8 Slot (front side slot for LSI 2208 add-on card)
• SATA: 2x SATA3 Ports (via AHCI, Support RAID 0, 1), 6x SATA2 Ports (4 via AHCI, Support RAID 0, 1, 5, 10; 2 via SCU, Support RAID 0, 1, 10)
• Video: Matrox G200eW Graphics
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 2x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary, 6.80 x 19.44 inch / 17.3 x 49.4 cm
• RoHS Compliant
